Transnational Family Genogram

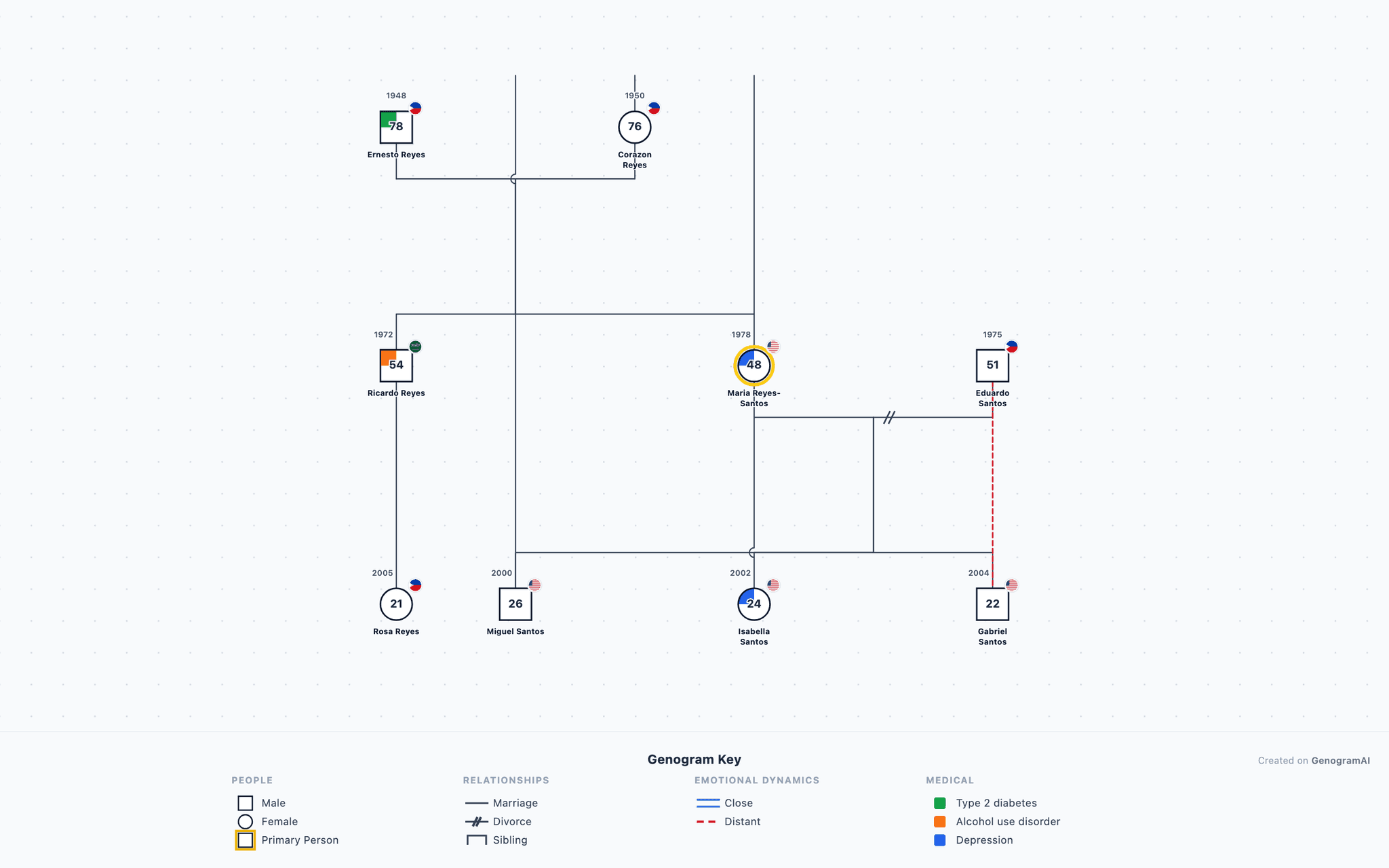

Quick answer
At a glance
| This example | |
|---|---|
| Generations | 3 |
| Family members | 9 (5 male, 4 female) |
| Birth years | 1948 to 2005 |
| Index person | Maria Reyes-Santos |
| Conditions marked | Mental Health Conditions and Diabetes |
| Category | Family structure |
| Tags | Immigration, Cultural, Clinical |
About this genogram
A transnational family genogram depicting an immigrant family split across three countries — the Philippines, Saudi Arabia, and the United States. This genogram illustrates the common reality of families separated by economic migration, where parents work abroad while children are raised by grandparents in the home country. The Reyes family spans three generations: grandparents in the Philippines who raised the children, a mother who worked as a nurse in Saudi Arabia for a decade before emigrating to the US, and children who joined their mother years later. The genogram captures the emotional toll of prolonged separation, the complex grief of reunion, cultural identity conflicts in second-generation immigrants, and the resilience of transnational family bonds maintained through technology and remittances. Increasingly relevant in family therapy with immigrant populations.
Family analysis
Overview
This 3-generation genogram maps 9 family members with birth years spanning from 1948 to 2005, comprising 5 males and 4 females. The genogram tracks 3 medical/psychological condition categories. The index patient is Maria Reyes-Santos (b. 1978), registered nurse.
Generation by generation
The family system encompasses 3 generations with distinct patterns at each level. The oldest generation includes Ernesto, Corazon, with 1 presenting documented conditions. The middle generation includes Ricardo, Maria, Eduardo, with 2 presenting documented conditions. The youngest generation includes Miguel, Isabella, Gabriel and 1 other, with 1 presenting documented conditions.
Health conditions
Medical and psychological conditions are documented in 4 of 9 family members (44%). Mental health conditions appear in 2 members (Maria, Isabella). Diabetes appears in 1 member (Ernesto). Substance appears in 1 member (Ricardo). The multigenerational prevalence of mental health conditions suggests both genetic predisposition and possible environmental or behavioral transmission pathways.
This genogram illustrates how family structure shapes individual development and relational patterns. Professionals working with families of this structure can use the genogram to normalize diverse family configurations and identify both strengths and areas for growth in the family system.
How do you read the Transnational Family Genogram?
- 1
Find each person and generation
Squares are males and circles are females, and each row is one generation, oldest at the top. This one has 5 males and 4 females across 3 generations. - 2
Check the status markers
Markers on a symbol add facts about that person: Index Patient (Arrow). The index person, the focus of the assessment, is Maria Reyes-Santos. - 3
Follow the family lines
Horizontal lines join partners and vertical lines drop to their children, born left to right in birth order. This genogram uses Marriage, Divorce and Parent-Child lines. - 4
Read the shading
Shaded symbols mark health conditions: Mental Health Conditions and Diabetes. Trace each line of descent to see where a condition recurs and where it stops.
Genogram symbols used in this example
| Symbol | Type | What it means |
|---|---|---|
| Male (Square) | Person Symbols | A square represents a male family member in standard genogram notation. |
| Female (Circle) | Person Symbols | A circle represents a female family member in standard genogram notation. |
| Index Patient (Arrow) | Status Markers | An arrow pointing to a person identifies them as the index patient — the individual who is the focus of the clinical assessment. |
| Marriage | Structural Relationships | A solid horizontal line connecting two individuals represents a marriage or committed partnership. |
| Divorce | Structural Relationships | A marriage line with two diagonal slashes indicates divorce or legal separation. |
| Parent-Child | Structural Relationships | A vertical line descending from a couple line to a child symbol represents a parent-child relationship. |
| Mental Health Conditions | Medical Conditions | Shading indicates psychological or psychiatric conditions beyond anxiety and depression. |
| Diabetes | Medical Conditions | Shading indicates Type 1 or Type 2 diabetes. |
Build a genogram like this one
Example prompt
- 1
Start from the dashboard
Sign in to GenogramAI and choose Create with AI (paid plans), or open a blank genogram and use Ask AI (any plan). To start from this exact chart instead, use Open as template. - 2
Describe your family
Paste a description like the one above, with your own names, dates, relationships and health history. - 3
Check and adjust
Edit people and lines by hand, or ask the AI for one change at a time. - 4
Export
Download a PNG on the free plan. PDF and SVG export are on paid plans.
