Depression Across Generations
Quick answer
At a glance
| This example | |
|---|---|
| Generations | 4 |
| Family members | 12 (6 male, 6 female) |
| Birth years | 1928 to 2020 |
| Deceased | 2 |
| Index person | Daniel Whitfield |
| Emotional relationships | Close |
| Conditions marked | Depressive Disorders and Mental Health Conditions |
| Category | Clinical & therapeutic |
| Tags | Clinical, Medical, Educational |
About this genogram

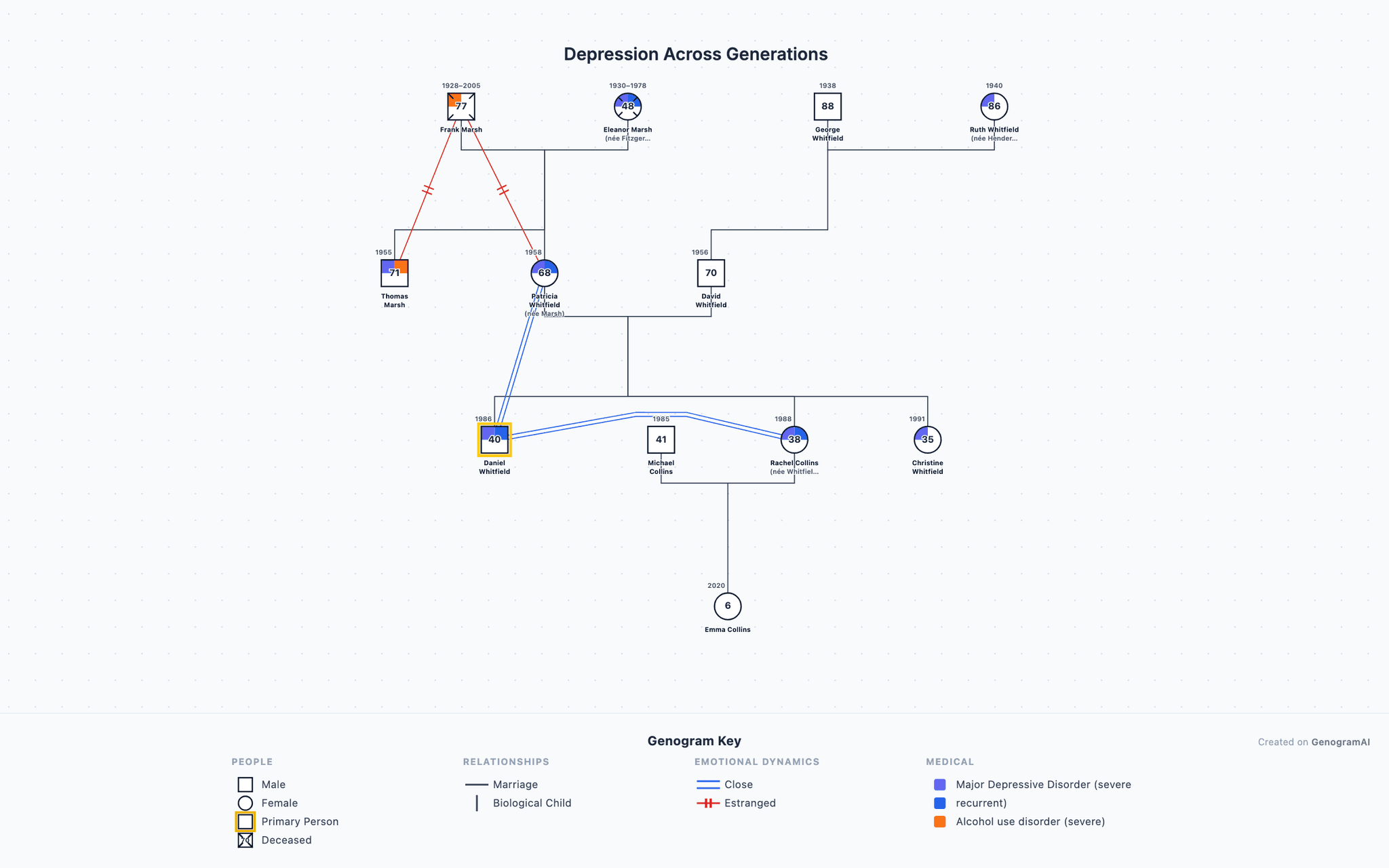

A three-generation genogram tracing major depressive disorder through the maternal line, illustrating patterns of suicide, alcoholism, recurrent depression, treatment-resistant depression, and postpartum depression. Highlights intergenerational transmission of mood disorders and family cutoff dynamics.
Clinical analysis
Overview
This 4-generation genogram maps 12 family members with birth years spanning from 1928 to 2020, comprising 6 males and 6 females (2 deceased). The genogram tracks 3 medical/psychological condition categories and 2 emotional relationship types across 4 documented dyads. The index patient is Daniel Whitfield (b. 1986), high school english teacher.
Generation by generation
The family system encompasses 4 generations with distinct patterns at each level. The oldest generation includes Eleanor, Frank, George and 1 other, with 3 presenting documented conditions. The middle generation includes Patricia, David, Thomas, with 2 presenting documented conditions. The youngest generation includes Daniel, Rachel, Michael and 1 other, with 3 presenting documented conditions.
Emotional relationships
Emotional relationship mapping reveals 2 estranged relationships, 2 close relationships. Specific patterns include a estranged relationship between Patricia and Frank, a close relationship between Daniel and Rachel, a close relationship between Patricia and Daniel.
Health conditions
Medical and psychological conditions are documented in 8 of 12 family members (67%). Depressive disorders appear in 7 members (Eleanor, Ruth, Patricia...), affecting 5 females and 2 males. Mental health conditions appear in 4 members (Eleanor, Patricia, Daniel...), affecting 3 females and 1 male. Substance appear in 2 members (Frank, Thomas). Comorbidity is observed in 5 family members, with Eleanor presenting 2 concurrent condition categories. The multigenerational prevalence of depressive disorders suggests both genetic predisposition and possible environmental or behavioral transmission pathways.
Clinical perspective
From a clinical perspective, this genogram offers rich material for therapeutic exploration. The presenting concerns of Daniel Whitfield can be contextualized within 4 generations of family patterns. Bowen family systems theory would note the intergenerational transmission of both symptomatic presentations and relational patterns. This case is particularly suited for exploring differentiation of self, family projection processes, and the way anxiety moves through the family emotional system.
How do you read the Depression Across Generations genogram?
- 1
Find each person and generation
Squares are males and circles are females, and each row is one generation, oldest at the top. This one has 6 males and 6 females across 4 generations. - 2
Check the status markers
Markers on a symbol add facts about that person: Deceased (X) and Index Patient (Arrow). 2 people are marked deceased. The index person, the focus of the assessment, is Daniel Whitfield. - 3
Follow the family lines
Horizontal lines join partners and vertical lines drop to their children, born left to right in birth order. This genogram uses Marriage and Parent-Child lines. - 4
Read the emotional lines
Lines drawn between two people show how they relate: Close. Notice who has several lines converging on them, and which patterns repeat from one generation to the next. - 5
Read the shading
Shaded symbols mark health conditions: Depressive Disorders and Mental Health Conditions. Trace each line of descent to see where a condition recurs and where it stops.
Genogram symbols used in this example
| Symbol | Type | What it means |
|---|---|---|
| Male (Square) | Person Symbols | A square represents a male family member in standard genogram notation. |
| Female (Circle) | Person Symbols | A circle represents a female family member in standard genogram notation. |
| Deceased (X) | Status Markers | An X drawn through the symbol indicates the person is deceased. |
| Index Patient (Arrow) | Status Markers | An arrow pointing to a person identifies them as the index patient — the individual who is the focus of the clinical assessment. |
| Marriage | Structural Relationships | A solid horizontal line connecting two individuals represents a marriage or committed partnership. |
| Parent-Child | Structural Relationships | A vertical line descending from a couple line to a child symbol represents a parent-child relationship. |
| Close | Emotional Relationships | Two parallel lines between individuals represent an emotionally close relationship. |
| Depressive Disorders | Medical Conditions | Shading indicates depressive conditions (major depression, dysthymia, bipolar disorder). |
| Mental Health Conditions | Medical Conditions | Shading indicates psychological or psychiatric conditions beyond anxiety and depression. |
Build a genogram like this one
Example prompt
- 1
Start from the dashboard
Sign in to GenogramAI and choose Create with AI (paid plans), or open a blank genogram and use Ask AI (any plan). To start from this exact chart instead, use Open as template. - 2
Describe your family
Paste a description like the one above, with your own names, dates, relationships and health history. - 3
Check and adjust
Edit people and lines by hand, or ask the AI for one change at a time. - 4
Export
Download a PNG on the free plan. PDF and SVG export are on paid plans.
The free plan includes 2 genograms and 5 AI credits a month. See the AI genogram creator for what else it can do.
