Ecomap in nursing — family health assessment guide

What is an ecomap in nursing?

An ecomap is a diagram that visualizes the connections between a client or family and the systems surrounding them — healthcare providers, employers, schools, community organizations, religious institutions, social services, and informal support networks. Each connection is drawn to show its character: strong, weak, or stressful. Arrows indicate whether energy and resources flow toward the family (support) or away from it (drain).

The tool was developed by social worker Ann Hartman in 1975 as a supplement to the genogram. Hartman needed a visual shorthand for capturing what she called the “ecological context” of a family — the web of systems that either sustain or deplete it. The ecomap crossed into nursing through family systems theory, most notably through Betty Neuman’s Systems Model and the Calgary Family Assessment Model (CFAM) developed by Wright and Leahey. In CFAM, the ecomap is a standard assessment tool used alongside the genogram to build a comprehensive picture of family structure and environment.

In nursing practice, the ecomap communicates things a medical history cannot. It shows whether a patient has transportation to their follow-up appointments. It shows whether their caregiving relationships are supportive or conflicted. It shows whether their employer is a source of income and stability or a source of chronic stress that compounds their condition. These are the variables that determine whether a care plan succeeds after discharge.

It is important to distinguish what an ecomap shows from what it does not show. An ecomap maps the current environment — the systems active in a patient’s life right now and the quality of each connection. It does not show family health history, hereditary disease risk, or intergenerational patterns. Those are the domain of the genogram. An ecomap tells you what the patient is going home to. A genogram tells you where they came from biologically and relationally.

Most BSN and MSN family nursing assessment assignments require both tools because together they provide the two axes of a complete family assessment: the intergenerational axis (genogram) and the ecological axis (ecomap).

Why nurses use ecomaps

Family nursing assessment is grounded in the premise that a patient’s health cannot be understood apart from their environment. Social determinants of health — housing stability, food security, insurance status, caregiver availability, employment conditions, community belonging — have measurable effects on health outcomes that are often larger than the clinical intervention itself. An ecomap makes these determinants visible and therefore actionable.

Without a systems map, a nurse may know that a patient has type 2 diabetes and was counseled on dietary changes. With an ecomap, that nurse knows the patient works ten-hour warehouse shifts with no access to a refrigerator, lives in a food desert, and has a mother who is emotionally supportive but models the same dietary patterns that elevated the patient’s A1c. The care plan looks completely different once that context is visible.

Discharge planning is one of the highest-stakes applications. Before a patient leaves the hospital, the discharge nurse needs to know what support network they are returning to. Does someone live with them? Who will drive them to follow-up appointments? Is there a caregiver, and is that relationship supportive or strained? Is the home environment safe? The ecomap in discharge planning answers these questions in a single diagram that the entire care team can read in under a minute.

Care coordination across fragmented systems is another direct application. A patient managing a chronic condition may have a primary care physician, a specialist, a home health nurse, a pharmacy, and a social worker — none of whom communicate directly. An ecomap surfaces that fragmentation. When the diagram shows five healthcare system circles with no lines connecting them, the coordination gap is impossible to ignore.

Patient education is a third use. When a nurse shows a patient their own ecomap and walks through it together, the care plan stops being something done to the patient and becomes something built with them. Patients who can see their own support network and its gaps are more likely to take ownership of connecting to the resources they need.

For nursing students, understanding the ecomap’s role alongside social work practice is also valuable. The ecomap in social work follows the same structural conventions and serves many of the same assessment functions, which is why interprofessional teams often produce and share a single ecomap across disciplines.

Ecomap vs genogram — which does your nursing assignment need?

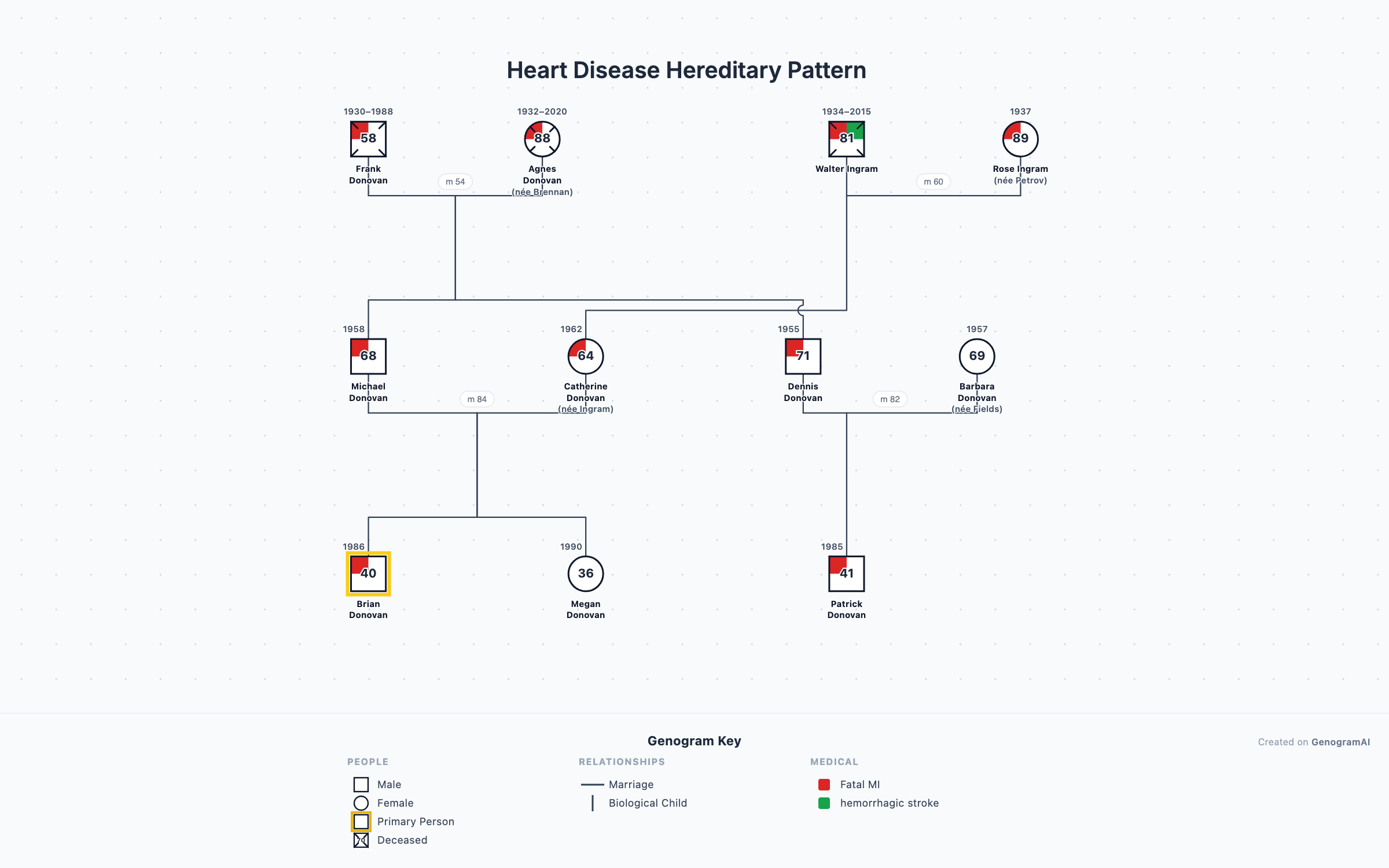

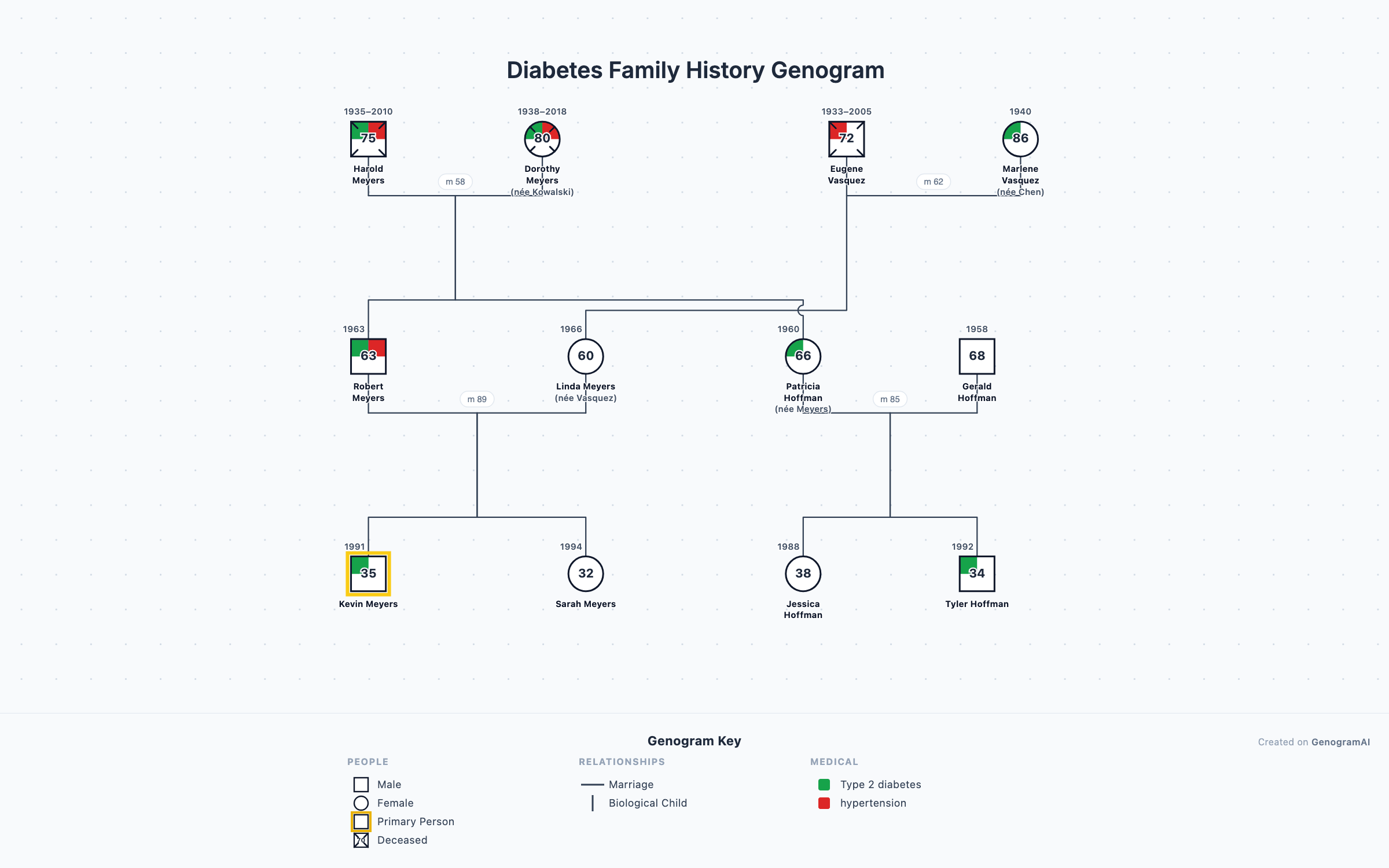

The distinction is straightforward once you understand what each tool is designed to answer. A genogram answers the question: “What health patterns run in this family?” It maps three or more generations, hereditary disease risk, family relationships, and significant health events across time. A genogram is oriented toward the past and the biological lineage.

An ecomap answers the question: “What systems are affecting this patient’s health right now?” It maps the current ecological context — the external systems the patient and family are connected to, and the nature of those connections. It is oriented toward the present and the environment.

Most nursing family health assessment assignments require both because a complete assessment addresses both the patient’s history and their current context. The ecomap vs genogram comparison is a common source of confusion in nursing school; the table below clarifies the key differences in a clinical context.

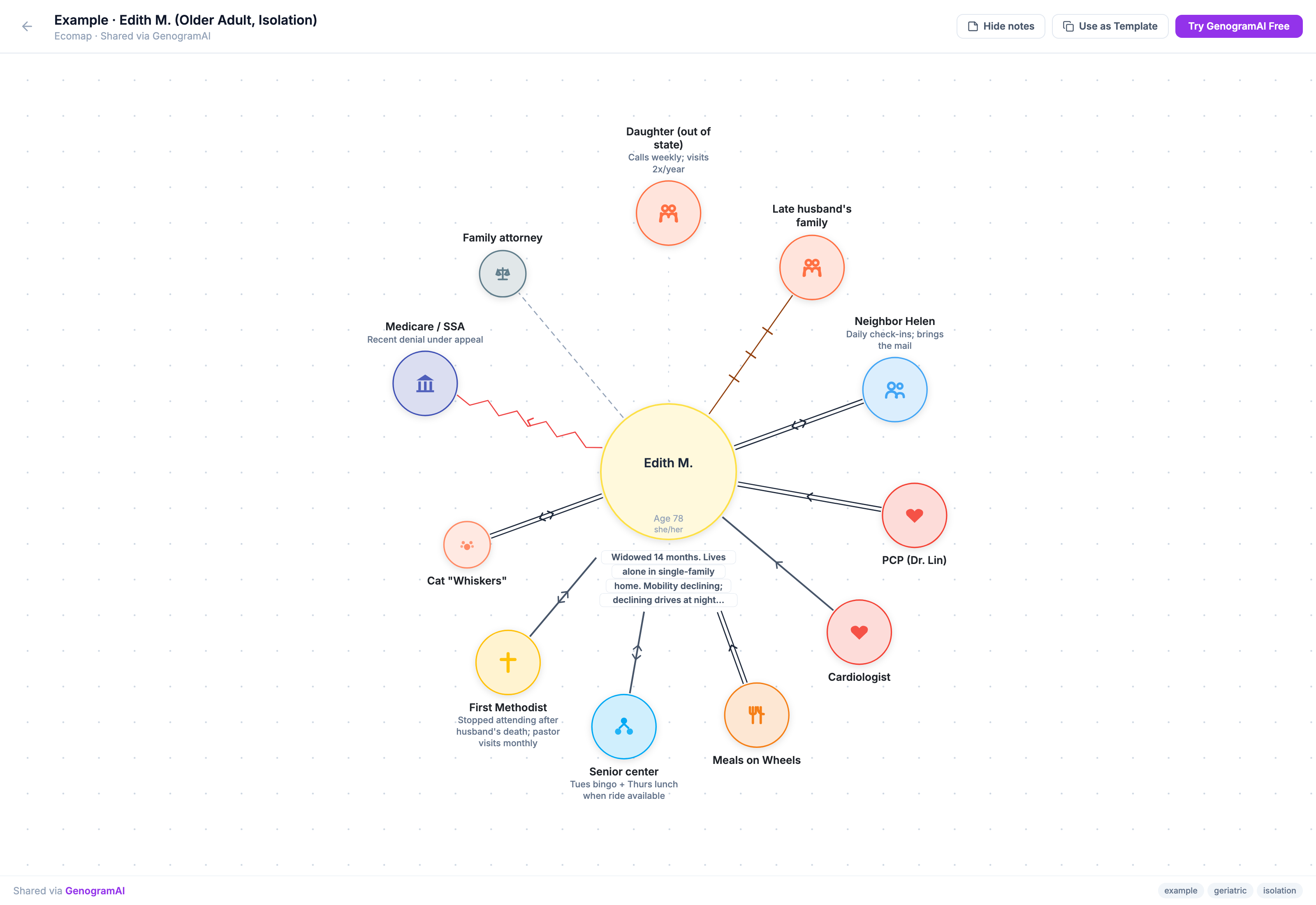

How to draw a nursing ecomap — step by step

Ecomap construction follows a consistent structure across nursing and social work contexts, though specific symbol conventions may vary by program. The steps below reflect the standard approach used in family nursing education.

Step 1: Draw the family unit at the center. Place a large circle in the middle of the page. Inside it, write the identified patient’s (IP) name or the family unit label (e.g., “Chen Family”). If multiple family members are part of the assessment unit, you can include their names or draw a simplified family structure inside the center circle.

Step 2: Identify all relevant systems. Brainstorm every external system that has a meaningful relationship to the family’s health and functioning. Standard categories include: healthcare providers (primary care, specialists, hospital, pharmacy), employer or school, religious or spiritual community, extended family, social services (Medicaid, food assistance, housing authority), insurance, housing/neighborhood, and informal social networks (friends, neighbors, community groups). Do not limit the map to positive or formal systems — stressors and absent connections are diagnostically important.

Step 3: Draw a circle for each system around the center circle. Arrange them in rough relation to their importance or proximity to the family — closer circles are often read as more central, though placement is flexible. Label each circle clearly.

Step 4: Connect with lines. Draw a line between each external system and the center circle. Use the following conventions: a thick, solid line for a strong connection; a thin or dashed line for a weak or tenuous connection; and a hatched or crossed line (lines with hash marks) for a stressful or conflicted connection. Some programs use a double line for an especially close or fused connection.

Step 5: Add directional arrows. On each connecting line, add arrowheads to indicate the direction of energy, resources, or support flow. An arrow pointing toward the center circle means the system provides support or resources to the family. An arrow pointing away means the family expends energy toward that system (often a drain). Arrows in both directions indicate a reciprocal relationship. This step is frequently omitted by students and is often a rubric requirement — do not skip it.

Step 6: Annotate briefly. Add short text notes on or near each connecting line to clarify its character. Examples: “sees cardiologist q3mo,” “no insurance,” “estranged — no contact last 2 years,” or “church meals 2x/week.” These annotations transform the diagram from a structural map into a clinically useful document.

A note on symbol standardization: ecomap symbols are less rigorously standardized than genogram symbols. Your nursing program may have a specific symbol set or rubric requirement. Always check your assignment instructions before finalizing your diagram format. See the ecomap creation guide for additional detail on symbol conventions.

Nursing ecomap example 1 — cardiovascular patient discharge planning

Patient context: Robert Chen, 61, is preparing for discharge following a five-day hospitalization for myocardial infarction. His wife Linda, 58, has type 2 diabetes and is his primary household support. Robert has been enrolled in a cardiac rehabilitation program as part of his discharge plan.

Robert’s ecomap includes the following systems and connection types:

• Cardiologist: Strong connection (seen regularly prior to MI, follow-up scheduled at two weeks). Arrow flows bidirectionally.
• Primary care physician: Moderate connection (annual visits only — a gap in ongoing care coordination). Arrow flows bidirectionally but thin.
• Cardiac rehabilitation program: New, weak connection (just enrolled at discharge — first appointment not yet attended). Arrow points toward center with question mark annotation; attendance is uncertain.
• Employer (high-pressure sales, travel required): Stressful connection. Arrow flows away from center. Annotated: “identified contributor to MI — return-to-work timeline TBD.”
• Son Michael, 33 (lives nearby): Strong supportive connection. Arrow toward center. Annotated: “will drive to cardiac rehab appointments.”
• Daughter, 30 (out of state): Weak, distant connection. Thin line, arrow minimally toward center. Annotated: “limited availability due to distance.”
• Church community: Moderate supportive connection. Arrow toward center. Annotated: “meals offered post-discharge.”
• Health insurance (employer plan): Strong connection. Arrow toward center. Annotated: “full coverage, no cost barrier to medications or rehab.”
• Housing: Stable. Owns home. No stressor noted.

What the ecomap reveals for discharge planning: Robert has adequate insurance coverage and strong immediate family support through his son. However, his overall support network is thin — his cardiac rehabilitation attendance depends entirely on Michael’s availability, creating a single point of failure in the recovery plan. His employer relationship is a documented stressor and a clinically significant risk factor for re-infarction. Linda’s own diabetes management adds a care burden to the household that the ecomap makes visible.

The discharge nurse uses this map to build a care plan that includes a direct conversation with Robert about occupational stress and return-to-work accommodation, an alternative transportation plan for cardiac rehab if Michael is unavailable, and a referral for a couples health coaching visit that addresses both Robert’s cardiac recovery and Linda’s diabetes management simultaneously. See additional context on ecomap use in discharge planning.

Nursing ecomap example 2 — diabetes management and family support

Patient context: Amara Johnson, 48, recently diagnosed with type 2 diabetes. She is a single parent with two teenage children (ages 16 and 13) and works full-time in warehouse distribution.

Amara’s ecomap includes the following systems:

• Primary care / endocrinologist: Moderate connection (new diagnosis, care relationship just established). Arrow bidirectional, thin. Annotated: “first A1c 9.2 — treatment plan initiated.”
• Diabetes education program: Weak, pending connection. Arrow toward center but dashed. Annotated: “referred but not yet attended — scheduling barrier cited.”
• Employer (warehouse, 10-hour shifts): Stressful connection. Arrow away from center. Annotated: “meals from vending machines only; no refrigeration access; physical demands high.”
• Mother, 72 (T2DM, lives nearby): Strong emotional connection but with a stressor element. Arrow bidirectional, solid but with hash mark notation on dietary dimension. Annotated: “primary emotional support; models high-carb dietary patterns that conflict with management goals.”
• Church food ministry: Moderate connection. Arrow toward center for social support. Annotated: “weekly communal meals — high-carb menu; positive community connection but limited dietary alignment.”
• Housing / neighborhood: Stable but food desert designation. Annotated: “nearest full grocery store 4 miles; no car — relies on corner store.”
• Medicaid insurance: Moderate connection. Arrow toward center but annotated with stressor: “limited formulary; out-of-pocket cost for preferred medications is a reported barrier.”
• Children (16, 13): Strong connection. Arrow toward center. Annotated: “motivation for adherence; teens preparing some household meals.”

What the ecomap reveals: Amara’s support network for diabetes management is substantially weaker than it appears at first clinical contact. Her mother provides vital emotional scaffolding but inadvertently undermines the dietary behavior changes that are the centerpiece of the care plan. Her work environment structurally limits access to healthy food during her longest waking hours. Her neighborhood removes the option of convenient, affordable grocery shopping. And her insurance introduces a cost barrier to optimal pharmacological management.

The nursing care plan built from this ecomap prioritizes: connecting Amara to the diabetes education program with an active scheduling assist (not just a referral), exploring employer accommodation for meal breaks and refrigerator access, identifying a community-supported agriculture or food bank resource that addresses the food desert gap, and a motivational conversation with Amara and her mother together about household dietary changes — framing the mother as a partner in the plan rather than an obstacle. The children’s emerging role in meal preparation is identified as an asset to build on.

Nursing ecomap example 3 — postpartum assessment

Patient context: Sarah Kim, 26, is three weeks postpartum, primiparous. She delivered a healthy infant at 39 weeks and is breastfeeding. Her partner David, 28, is currently on paternity leave. At her two-week postpartum visit, her Edinburgh Postnatal Depression Scale (EPDS) score was 11 — in the range warranting monitoring and follow-up.

Sarah’s ecomap includes the following systems:

• OB provider: Strong connection. Two-week postpartum visit completed; next visit scheduled at six weeks. Arrow bidirectional, solid.
• Pediatrician: Strong connection. Newborn visits on schedule; weight gain on track. Arrow bidirectional, solid.
• Partner David: Strong supportive connection. Arrow toward center. Annotated: “actively involved; handling night feeds on rotation; on leave through week 10.” Notable: David’s leave ends in seven weeks, introducing a future stressor that is visible on the map.
• Sarah’s mother: Stressful connection despite frequency of contact. Hatched line, arrow bidirectional. Annotated: “critical of breastfeeding choices; visits add anxiety; relationship described as ‘complicated.’”
• Employer / maternity leave: Strong connection (low immediate stressor). Arrow toward center. Annotated: “12 weeks fully paid leave; return-to-work planning not yet initiated.”
• Social network / friends: Weak connection. Thin dashed line, arrow minimally toward center. Annotated: “most close friends are child-free; Sarah reports feeling isolated and ‘out of sync.’”
• Mental health resources: Absent. No circle. The ecomap has a visible gap where a mental health provider should appear, flagged explicitly in the narrative analysis. Annotated in the assessment: “no mental health provider in network despite EPDS score of 11 at two-week visit.”

What the ecomap reveals: Sarah has strong practical infrastructure — an engaged partner, adequate leave, attentive clinical providers for both herself and her infant. On the surface, her situation looks well-resourced. The ecomap makes visible what the medical record does not: notable social isolation, a conflicted relationship with her primary family-of-origin contact, and a complete absence of mental health support despite a borderline screening score.

The postpartum nurse uses this to prioritize a warm referral to a postpartum support group (addressing social isolation with peers who share her experience) and a direct mental health provider referral with an active scheduling assist before the six-week visit. The ecomap also prompts the nurse to flag David’s upcoming end of leave as a transition risk point requiring follow-up planning. For patients with mental health vulnerabilities, ecomap use in mental health assessment follows the same structural approach with additional attention to the support gap visualization.

What nursing programs look for in an ecomap assignment

Family nursing assessment assignments that include an ecomap typically evaluate both the diagram and a written narrative analysis. The diagram components most commonly assessed in rubrics are: the family unit at the center, a minimum of six to eight external systems, accurate connection-type notation (strong, weak, stressful) using the appropriate line styles, directional arrows on every connection, and brief annotations that clarify the nature of each relationship.

Several common errors reduce assignment scores. The first is including only positive supports and omitting stressors. A clinical ecomap that shows only helpful systems is not a clinical assessment — it is wishful thinking. Stressors and absent connections carry as much diagnostic weight as supports. The second common error is omitting directional arrows. Arrows are what distinguish a structural map from a clinical tool: they show whether systems are providing resources to the family or draining them. Third, students frequently exclude healthcare providers as a system. Providers are the most directly actionable systems in a nursing context and should always be represented.

The narrative analysis is often worth as much as the diagram itself. Most assignments require a one- to two-page written component that explains what the ecomap reveals and translates those findings into nursing care plan implications. The narrative should identify the key supports, the key stressors, the notable gaps, and the specific interventions those findings suggest. A diagram without a narrative is incomplete; a narrative without a diagram is a list of observations without the systems-level synthesis that makes the ecomap clinically useful.

If your nursing program uses the Calgary Family Assessment Model (CFAM), the Roy Adaptation Model, or Betty Neuman’s Systems Model as its theoretical framework, confirm whether the program prescribes specific symbol conventions or structural requirements. Symbol standardization in ecomaps is less rigid than in genograms, and programs vary in what they require. When in doubt, the assignment rubric is the authoritative reference.

How to create a nursing ecomap quickly

For assignments and clinical documentation alike, the ecomap can be drawn on paper using standard circle-and-line format. A blank page, a pencil, and the six-step process above are sufficient. Paper ecomaps are entirely appropriate for most nursing school submissions.

For digital creation, GenogramAI’s AI ecomap generator supports ecomap creation alongside genogram building. Describe the patient’s support systems in plain text — the types of systems present, the strength and nature of each connection, any notable annotations — and the AI builds the diagram. Output can be exported as PDF or PNG for embedding in an assignment document, EHR documentation, or a case presentation.

The ecomap tool is designed to support both student assignments and clinical practice settings. For practice-setting use where patient privacy is a consideration, the platform includes clinical mode features designed for HIPAA-conscious documentation. Nursing students submitting assignments typically use de-identified or fictional patient cases (as in the examples above), which removes the privacy consideration entirely.

Whether you are building a nursing school assignment or documenting a real discharge plan, the ecomap is a ten-minute investment that makes the care plan substantially more targeted. The time cost is low; the clinical yield is high.

Frequently asked questions

What is an ecomap used for in nursing?

In nursing, an ecomap is used to map the external systems surrounding a patient or family and to assess the quality of those connections — which are supportive, which are stressful, and which are absent. It is a core tool in family systems nursing assessments, discharge planning, social determinants of health screening, and care coordination. The ecomap makes environmental factors visible so that the nursing care plan can address them directly rather than assuming the patient will navigate them independently.

What’s the difference between an ecomap and a genogram in nursing?

A genogram maps the family’s biological and relational history across three or more generations, including hereditary disease risk, family relationships, and significant health events over time. An ecomap maps the current environmental context — the external systems the patient is connected to right now and the nature of those connections. Genograms are oriented toward the past and the biological; ecomaps are oriented toward the present and the ecological. Together they provide a complete family systems assessment. Separately, each answers a different clinical question.

Does my nursing family health assessment need both a genogram and an ecomap?

Most BSN and MSN family health assessment assignments require both tools because they assess complementary dimensions of the family. If your assignment specifies only one, use the question being asked to determine which: if the focus is on health history, hereditary risk, or intergenerational patterns, you need a genogram. If the focus is on current support systems, social determinants, or discharge planning, you need an ecomap. When in doubt, check the assignment rubric or ask your instructor — many rubrics that appear to require only one tool actually expect both.

What systems should I include in a nursing ecomap?

Include any system that has a meaningful relationship to the patient’s health and functioning. Standard categories are: healthcare providers (primary care, specialists, pharmacy, hospital), employer or school, religious or spiritual community, extended family and informal social networks, social services (Medicaid, food assistance, housing support), insurance, and the housing and neighborhood environment. Do not limit the map to formal or positive systems. Stressors, conflicted relationships, and absent systems (such as a missing mental health provider despite documented need) are among the most diagnostically important elements of the diagram.

How do I analyze an ecomap for a nursing assignment?

An ecomap analysis answers four questions: What are the strongest supports, and are they reliable? What are the key stressors, and what is their health impact? What systems are absent or weak that should be present? And what do these findings suggest for the nursing care plan? The written narrative should move from observation (what the diagram shows) to interpretation (what it means clinically) to action (what the nurse does with this information). Citing specific systems by name and connecting each to a concrete care plan recommendation is what distinguishes a strong analysis from a general description of the diagram. See genogram and ecomap examples for additional annotated case references.
