Genetic Counseling Genogram
A genetic counseling genogram for a couple seeking pre-conception genetic counseling.
Interactive Genetic Counseling Genogram
Click and drag to explore. Zoom with scroll.
Can't see the genogram? View in the GenogramAI Gallery
About This Genogram

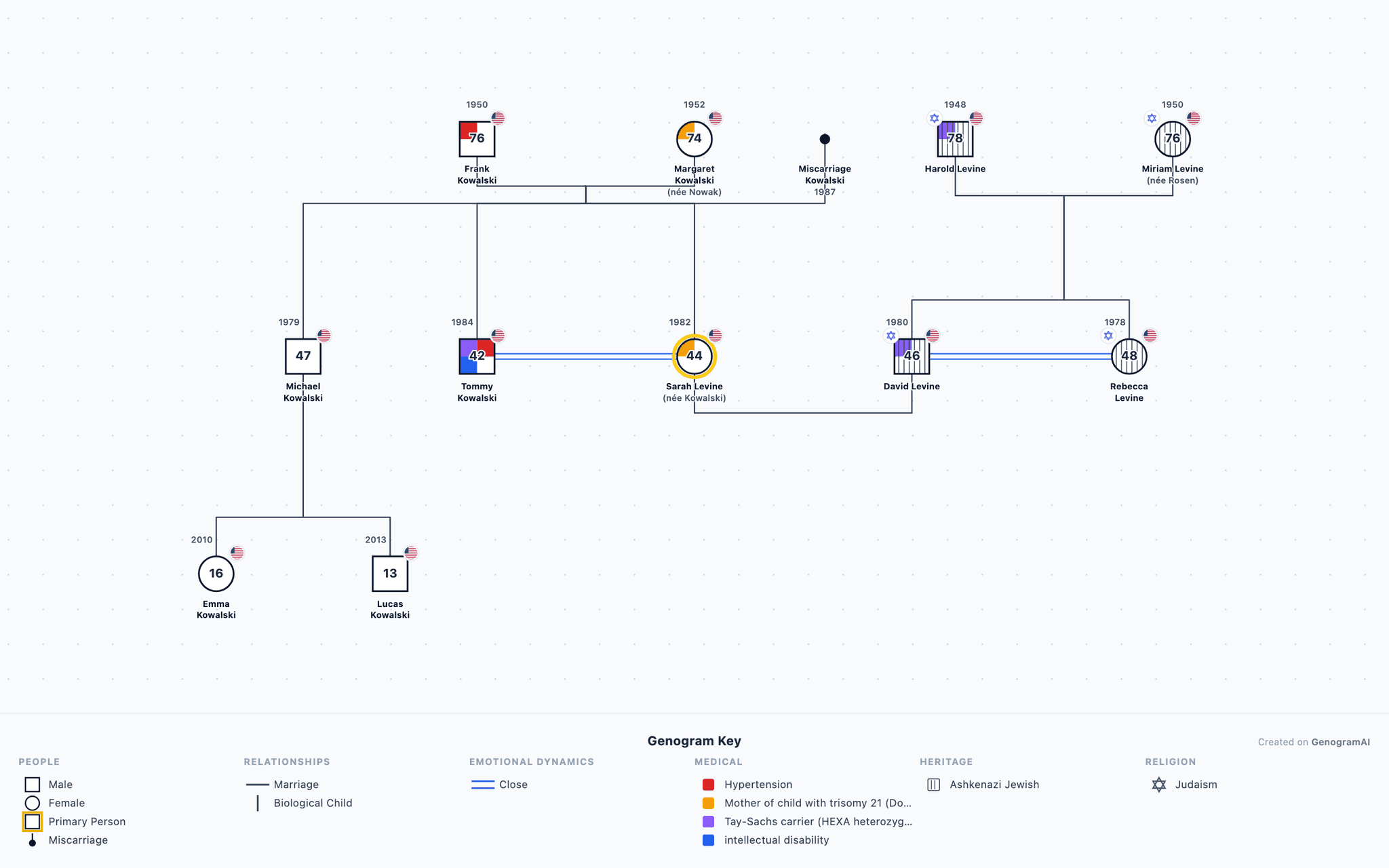

A genetic counseling genogram for a couple seeking pre-conception genetic counseling. The wife\'s family has a history of Down syndrome (trisomy 21) including an affected sibling. The husband\'s family is of Ashkenazi Jewish heritage with Tay-Sachs carrier status in the lineage. Demonstrates how genograms are used in genetic counseling to map carrier statuses, affected individuals, reproductive history, and calculate genetic risk for future pregnancies.
How to Read This Genogram
Standard genogram notation follows the conventions established by McGoldrick, Gerson, and Petry, which are widely adopted across social work, marriage and family therapy, psychology, and medicine. Squares represent male-identified individuals, circles represent female-identified individuals, and an X through either symbol indicates the person is deceased. Horizontal lines connect partners, with a single slash for separation and a double slash for divorce. Vertical and diagonal lines descend to children, who are arranged in birth order from left to right within a generation. A three-generation diagram is the minimum recommended for clinical use because it provides enough generational depth to identify repeating patterns.
Clinical applications range from intake assessment to treatment planning and outcome review. In a first session, a clinician sketching a genogram with a client gathers structural and historical data while simultaneously building rapport through collaborative storytelling. The resulting diagram then guides the clinician toward hypotheses about symptom function, family roles, and relational resources available to the client. In subsequent sessions the genogram can be updated as new information surfaces, and tracking those additions over time often reveals how the client's understanding of their own family history shifts in parallel with therapeutic progress.
Key Patterns in This Genogram
Family Structure
How this family structure is represented using standard genogram notation.
Relationship Patterns
Key relationship dynamics and emotional bonds within the family system.
Clinical Application
How professionals use this type of genogram in assessment and treatment.
Family Analysis
This 3-generation genogram maps 12 family members with birth years spanning from 1948 to 2013, comprising 6 males and 6 females. The genogram tracks 4 medical/psychological condition categories and 1 emotional relationship type across 2 documented dyads. The index patient is Sarah Levine (b. 1982), occupational therapist.
The family system encompasses 3 generations with distinct patterns at each level. The oldest generation includes Frank, Margaret, Harold and 2 others, with 4 presenting documented conditions. The middle generation includes Sarah, David, Tommy and 2 others, with 3 presenting documented conditions. The youngest generation includes Emma, Lucas.
Emotional relationship mapping reveals 2 close relationships. Specific patterns include a close relationship between Sarah and Tommy, a close relationship between David and Rebecca.
Medical and psychological conditions are documented in 7 of 12 family members (58%). Reproductive appear in 3 members (Margaret, Sarah, Miscarriage). Genetic conditions appear in 3 members (Harold, David, Tommy). Cardiovascular conditions appear in 2 members (Frank, Tommy). Comorbidity is observed in 1 family member, with Tommy presenting 3 concurrent condition categories. The multigenerational prevalence of reproductive suggests both genetic predisposition and possible environmental or behavioral transmission pathways.
This genogram illustrates how family structure shapes individual development and relational patterns. Professionals working with families of this structure can use the genogram to normalize diverse family configurations and identify both strengths and areas for growth in the family system.
Build a Similar Genogram
A practitioner documenting a family similar to this one would typically record three generations of household composition, significant life events such as births, deaths, marriages, and separations, any relevant medical or mental health history, and the quality of key relationships between members. That information comes from a combination of the client's verbal account, intake questionnaires, and, where available, collateral records. The completed diagram captures both the factual structure of the family and the practitioner's clinical observations about relational patterns, making it a reference that can be shared across disciplines or reviewed at future stages of treatment.
GenogramAI's AI genogram generator allows you to build a diagram like this one from a plain-language description of the family. You type or paste a narrative, such as the basic structure and any key relationships or health history you want to include, and the AI parses that text, places the correct symbols, draws the appropriate relationship lines, and arranges the layout automatically. The result is a fully editable diagram that you can refine, annotate, and export for clinical records or educational use. Try the AI genogram creator to generate your own genogram from a text description in seconds.
Genogram Symbols Used in This Example
The following standard genogram symbols appear in the Genetic Counseling Genogram. Each symbol follows McGoldrick and Gerson clinical notation conventions.
Person Symbols
- Male (Square)
- A square represents a male family member in standard genogram notation.
- Female (Circle)
- A circle represents a female family member in standard genogram notation.
Status Markers
- Index Patient (Arrow)
- An arrow pointing to a person identifies them as the index patient — the individual who is the focus of the clinical assessment.
Structural Relationships
- Marriage
- A solid horizontal line connecting two individuals represents a marriage or committed partnership.
- Parent-Child
- A vertical line descending from a couple line to a child symbol represents a parent-child relationship.
Emotional Relationships
- Close
- Two parallel lines between individuals represent an emotionally close relationship.
Medical Conditions
- Mental Health Conditions
- Shading indicates psychological or psychiatric conditions beyond anxiety and depression.
- Cardiovascular Conditions
- Shading indicates heart disease, hypertension, stroke, or other cardiovascular conditions.
- Genetic Conditions
- Shading indicates inherited genetic disorders (sickle cell, hemophilia, cystic fibrosis, etc.).
Related Resources
- Explore how career genograms map occupational patterns across generations.
- Learn how genograms in social work professionals use specialized genograms in practice.
- This example uses the close relationship symbol to denote emotional closeness between family members.
- The marriage symbol connects partnered individuals in this genogram.
Frequently Asked Questions
What clinical patterns does the Genetic Counseling Genogram genogram reveal?
Who would benefit from studying the Genetic Counseling genogram?
What genogram symbols are used in the Genetic Counseling Genogram example?
Can I build a similar genogram for my own clinical cases?
Related Genogram Examples
Military Family (Deployment/PTSD)

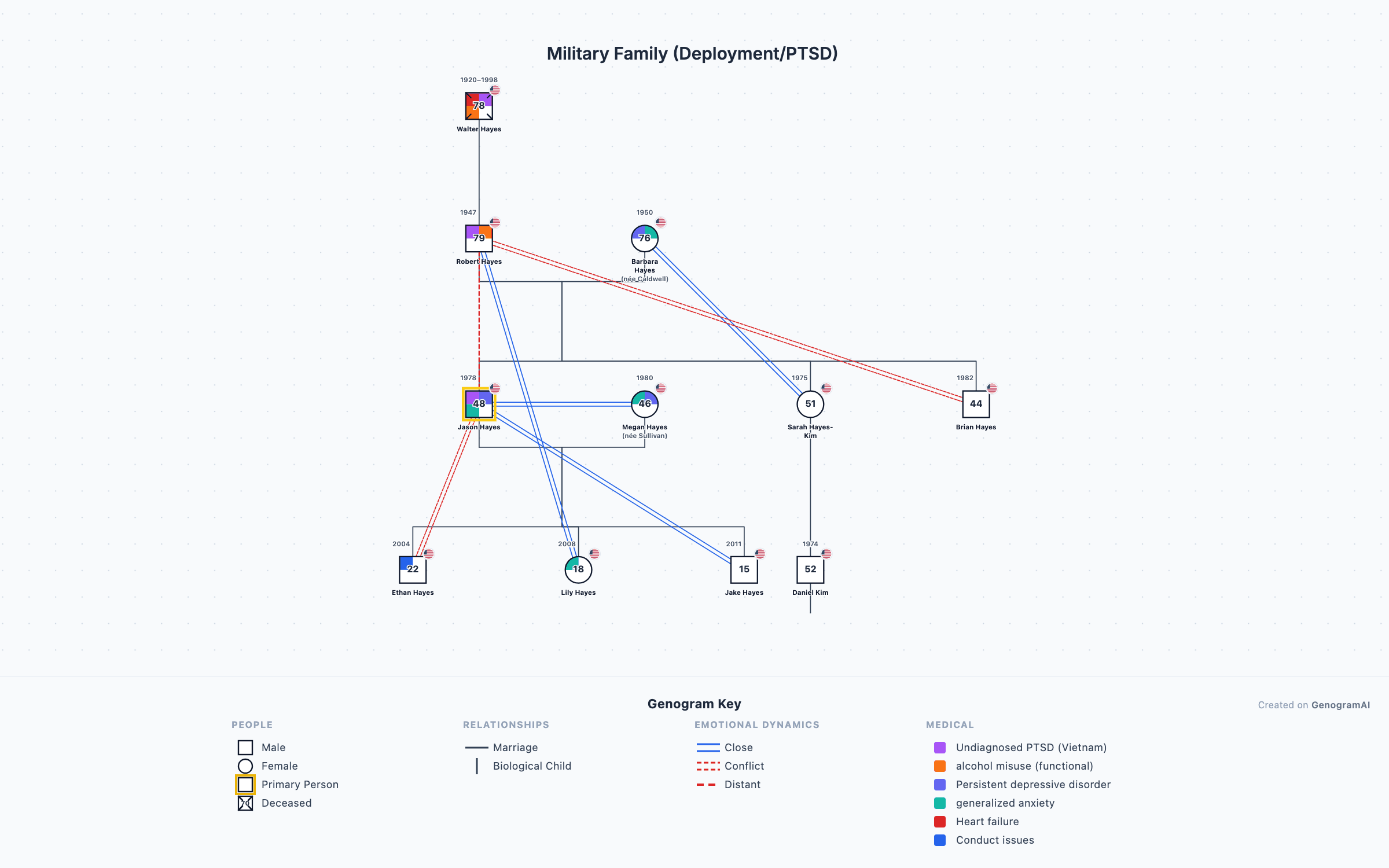

A multi-generational military family genogram illustrating the cumulative effects of combat deployment across three generations: Vietnam, Iraq, and Afghanistan.
