Multi-Divorce Blended Family

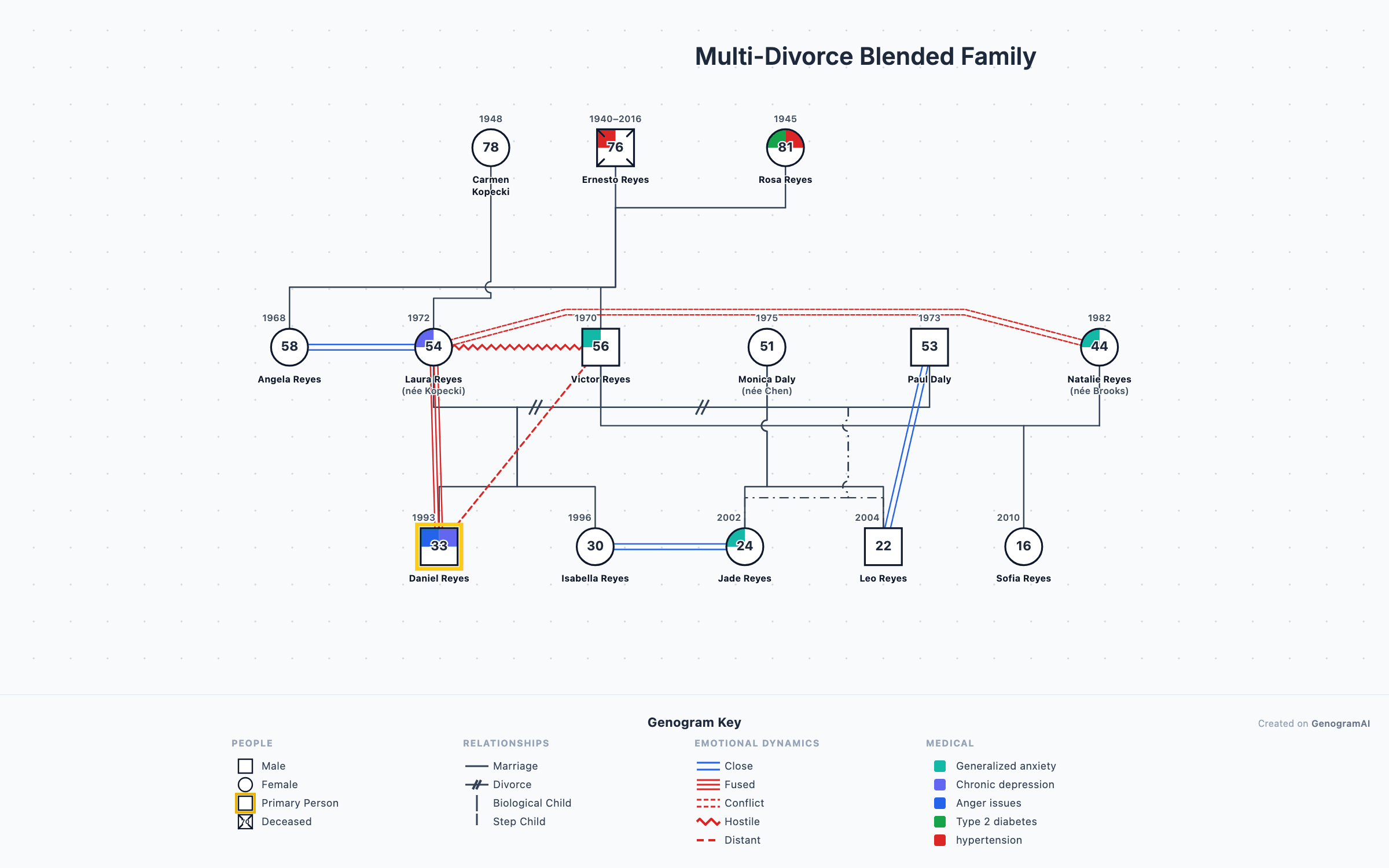

A multi-divorce blended family genogram featuring a father married three times with children from each marriage.
Interactive Multi-Divorce Blended Family
Click and drag to explore. Zoom with scroll.
Can't see the genogram? View in the GenogramAI Gallery
About This Genogram
A multi-divorce blended family genogram featuring a father married three times with children from each marriage. Illustrates complex custody arrangements, half-sibling and step-sibling relationships, conflict between ex-wives, and the challenges children face navigating multiple households and loyalty conflicts.
How to Read This Genogram
A family structure genogram maps household composition and biological or legal relationships across at least three generations using a standardized set of structural lines. Solid horizontal lines between two symbols indicate a committed partnership or marriage; a single diagonal slash through that line marks a separation, and a double slash marks a divorce. Children descend from the couple line on vertical drops, and their birth order runs left to right. Dashed lines or dotted horizontal connectors indicate step, foster, or adoptive bonds, so that a reader can distinguish biological parentage from the household arrangement in which a child was actually raised.
Reading a family structure genogram begins at the top generation and moves downward, noting who forms each household at each generational level. The key questions are: Which children grew up together? Which adults held parenting roles, and were those roles biological, legal, or both? Where do the generational boundaries fall? Households that contain members from more than one biological line, or that skip a generation, stand out visually and prompt the clinician to ask how those arrangements shaped each member's experience of family. Structure alone does not explain behavior, but it establishes the relational architecture on which emotional patterns are later mapped.
Key Patterns in This Genogram
Family Structure
How this family structure is represented using standard genogram notation.
Relationship Patterns
Key relationship dynamics and emotional bonds within the family system.
Clinical Application
How professionals use this type of genogram in assessment and treatment.
Family Analysis
This 3-generation genogram maps 14 family members with birth years spanning from 1940 to 2010, comprising 5 males and 9 females (1 deceased). The genogram tracks 5 medical/psychological condition categories and 5 emotional relationship types across 7 documented dyads. The index patient is Daniel Reyes (b. 1993), paralegal.
The family system encompasses 3 generations with distinct patterns at each level. The oldest generation includes Victor, Laura, Monica and 1 other, with 2 presenting documented conditions. The middle generation includes Natalie, Daniel, Isabella and 2 others, with 3 presenting documented conditions. The youngest generation includes Sofia.
Emotional relationship mapping reveals 1 hostile relationship, 1 conflictual relationship, 3 close relationships, 1 distant relationship, 1 fused/enmeshed relationship. Specific patterns include a hostile relationship between Laura and Victor, a conflictual relationship between Laura and Natalie, a close relationship between Isabella and Jade. The co-occurrence of fused and conflictual relationships suggests a family system with poorly differentiated boundaries, where emotional intensity oscillates between enmeshment and discord.
Medical and psychological conditions are documented in 7 of 14 family members (50%). Anxiety-spectrum conditions appear in 3 members (Victor, Natalie, Jade), affecting 2 females and 1 male. Depressive disorders appear in 2 members (Laura, Daniel), affecting 1 female and 1 male. Cardiovascular conditions appear in 2 members (Rosa, Ernesto), affecting 1 female and 1 male. Comorbidity is observed in 2 family members, with Daniel presenting 2 concurrent condition categories. The multigenerational prevalence of anxiety-spectrum conditions suggests both genetic predisposition and possible environmental or behavioral transmission pathways.
This genogram illustrates how family structure shapes individual development and relational patterns. The presence of step child connections highlights the complexity of modern family systems beyond traditional biological models. Professionals working with families of this structure can use the genogram to normalize diverse family configurations and identify both strengths and areas for growth in the family system.
Build a Similar Genogram
A practitioner documenting a family similar to this one would typically record three generations of household composition, significant life events such as births, deaths, marriages, and separations, any relevant medical or mental health history, and the quality of key relationships between members. That information comes from a combination of the client's verbal account, intake questionnaires, and, where available, collateral records. The completed diagram captures both the factual structure of the family and the practitioner's clinical observations about relational patterns, making it a reference that can be shared across disciplines or reviewed at future stages of treatment.
GenogramAI's AI genogram generator allows you to build a diagram like this one from a plain-language description of the family. You type or paste a narrative, such as the basic structure and any key relationships or health history you want to include, and the AI parses that text, places the correct symbols, draws the appropriate relationship lines, and arranges the layout automatically. The result is a fully editable diagram that you can refine, annotate, and export for clinical records or educational use. Try the AI genogram creator to generate your own genogram from a text description in seconds.
Genogram Symbols Used in This Example
The following standard genogram symbols appear in the Multi-Divorce Blended Family. Each symbol follows McGoldrick and Gerson clinical notation conventions.
Person Symbols
- Male (Square)
- A square represents a male family member in standard genogram notation.
- Female (Circle)
- A circle represents a female family member in standard genogram notation.
Status Markers
- Deceased (X)
- An X drawn through the symbol indicates the person is deceased.
- Index Patient (Arrow)
- An arrow pointing to a person identifies them as the index patient — the individual who is the focus of the clinical assessment.
Structural Relationships
- Marriage
- A solid horizontal line connecting two individuals represents a marriage or committed partnership.
- Divorce
- A marriage line with two diagonal slashes indicates divorce or legal separation.
- Parent-Child
- A vertical line descending from a couple line to a child symbol represents a parent-child relationship.
Child Connection Types
- Biological Child
- A solid vertical line from parent to child indicates a biological relationship.
- Stepchild
- A dashed vertical line indicates a step-parent/step-child relationship.
Emotional Relationships
- Close
- Two parallel lines between individuals represent an emotionally close relationship.
- Distant
- A dotted line represents an emotionally distant or disengaged relationship.
- Conflict
- A zigzag line between individuals represents an openly conflictual relationship.
- Fused/Enmeshed
- Three parallel lines with a zigzag overlay represent a fused relationship — emotionally intense with poor boundaries.
- Hostile
- A zigzag line with an arrow indicates a hostile, one-directional aggressive dynamic.
Medical Conditions
- Anxiety Conditions
- Shading in the genogram symbol indicates anxiety-spectrum diagnoses (GAD, panic disorder, phobias, OCD).
- Depressive Disorders
- Shading indicates depressive conditions (major depression, dysthymia, bipolar disorder).
- Mental Health Conditions
- Shading indicates psychological or psychiatric conditions beyond anxiety and depression.
- Cardiovascular Conditions
- Shading indicates heart disease, hypertension, stroke, or other cardiovascular conditions.
- Diabetes
- Shading indicates Type 1 or Type 2 diabetes.
