Domestic Violence Cycle Genogram

About This Genogram

A three-generation genogram depicting the intergenerational transmission of domestic violence. The grandfather was violent toward the grandmother, the father witnessed the violence and became a perpetrator himself, and the third generation shows early signs of the cycle continuing. Includes PTSD in the mother, substance abuse as a coping mechanism, and the differential impact on male and female children. Highlights protective factors and points of intervention.

How to Read This Genogram

An emotional or relational genogram adds a second layer of notation on top of structural lines to indicate the quality of relationships between family members. Clinicians following McGoldrick and Gerson conventions use distinct line styles: a thick unbroken line for a close relationship, a wavy line for a conflictual one, parallel lines for enmeshment, a dashed line for distance, and a broken line with a gap for cutoff. These relationship lines are drawn between pairs of individuals anywhere on the diagram, not only between couples, so sibling rivalries, parent-child enmeshment, and grandparent-grandchild bonds all become visible on the same map.

Reading this type of genogram clinically means identifying clusters of relationship quality rather than looking at individual pairs in isolation. A family where most lines converge on one central person often signals a focal triangle or an emotionally overloaded family member whose symptoms may be partly systemic in origin. A pattern of multiple cutoffs across generations points toward a family culture that resolves conflict through emotional distance rather than negotiation. Therapists use these patterns to form early hypotheses about what the family will need in treatment and which relationships may serve as resources or as barriers when change begins.

Key Patterns in This Genogram

Emotional Patterns

Recurring patterns of emotional connection, distance, and conflict in the family.

Relationship Lines

How genogram notation captures the quality and nature of family relationships.

Therapeutic Insight

How visualizing emotional patterns helps in clinical assessment and treatment planning.

Pattern Analysis

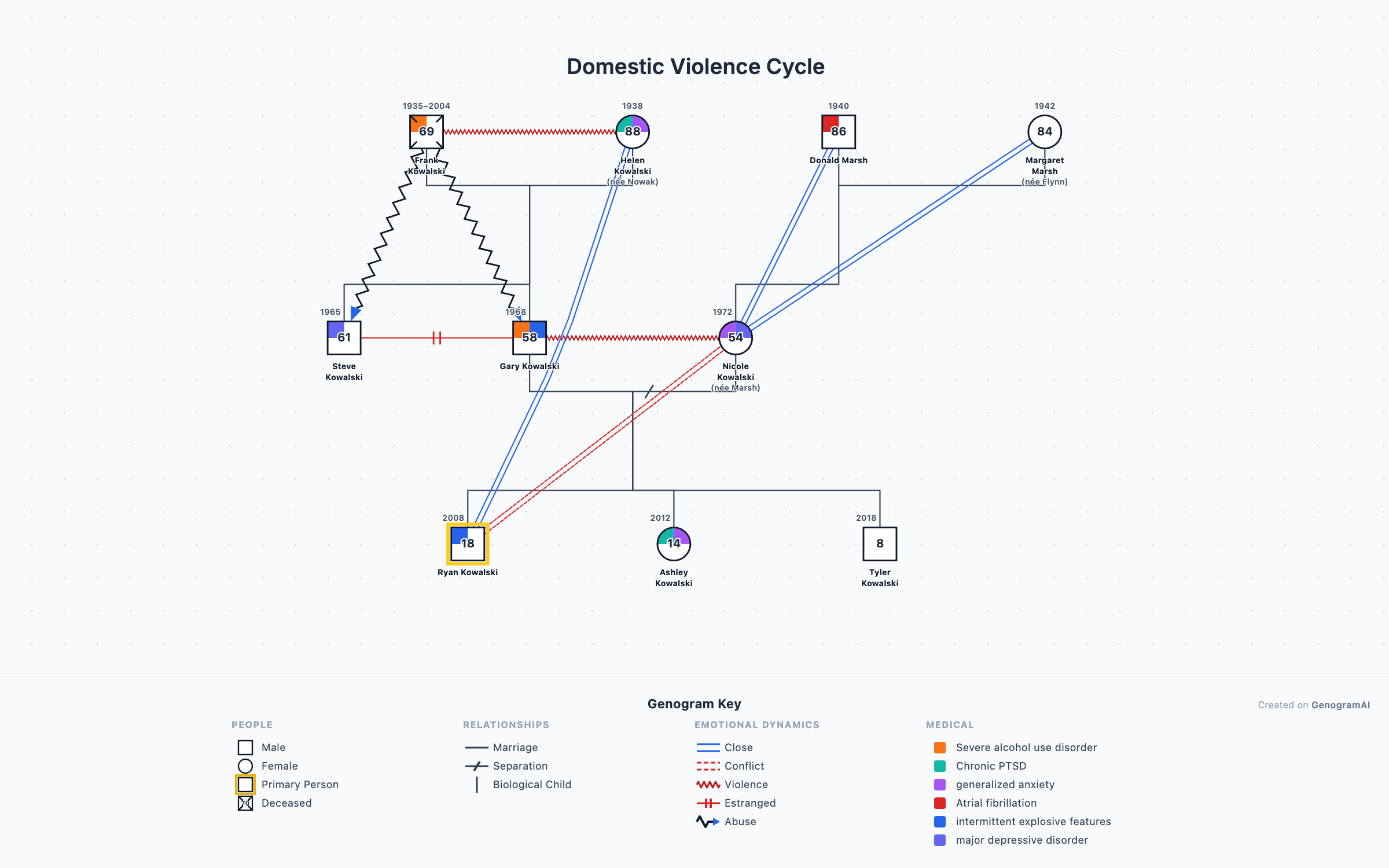

This 3-generation genogram maps 10 family members with birth years spanning from 1935 to 2018, comprising 6 males and 4 females (1 deceased). The genogram tracks 6 medical/psychological condition categories and 5 emotional relationship types across 9 documented dyads. The index patient is Ryan Kowalski (b. 2008), high school student (10th grade).

The family system encompasses 3 generations with distinct patterns at each level. The oldest generation includes Frank, Helen, Donald and 1 other, with 3 presenting documented conditions. The middle generation includes Gary, Nicole, Steve, with 3 presenting documented conditions. The youngest generation includes Ryan, Ashley, Tyler, with 2 presenting documented conditions.

Emotional relationship mapping reveals 2 abusive relationships, 2 abuse relationships, 3 close relationships, 1 estranged relationship, 1 conflictual relationship. Specific patterns include a abusive relationship between Frank and Helen, a abusive relationship between Gary and Nicole, a abuse relationship between Frank and Gary. Conflictual patterns highlight areas of tension that may benefit from therapeutic intervention and improved communication strategies.

Medical and psychological conditions are documented in 8 of 10 family members (80%). Trauma-related conditions appear in 3 members (Helen, Nicole, Ashley). Substance appear in 2 members (Frank, Gary). Anxiety-spectrum conditions appear in 2 members (Helen, Ashley). Comorbidity is observed in 4 family members, with Helen presenting 2 concurrent condition categories. The multigenerational prevalence of trauma-related conditions suggests both genetic predisposition and possible environmental or behavioral transmission pathways.

This genogram is particularly valuable for understanding the family emotional system. With 9 documented emotional relationships across 5 categories, it provides rich material for mapping emotional process. Therapists can use these patterns to identify triangles, track emotional reactivity, and help family members develop greater awareness of how their relationship patterns mirror those of previous generations.
