Relationship Lines Reference
A comprehensive teaching genogram focused on demonstrating all emotional relationship line types used in genogram notation.
Interactive Relationship Lines Reference
Click and drag to explore. Zoom with scroll.
Can't see the genogram? View in the GenogramAI Gallery
About This Genogram
A comprehensive teaching genogram focused on demonstrating all emotional relationship line types used in genogram notation. Each emotional connection between family members is annotated with an explanation of the line style, its clinical meaning, and when it would be used in practice. Includes close, fused, conflict, hostile, distant, estranged, cutoff-repaired, abuse, focused-on, and additional line types. Pure visual reference for students and clinicians.
How to Read This Genogram
In MSW and MFT training programs, students construct and interpret genograms as a core competency because the skill underpins much of what happens in family-based assessment. Early assignments ask students to diagram their own family of origin using standard notation, which develops both technical accuracy and reflective self-awareness about the systems that shaped them. Later assignments introduce constructed case examples like this one, where students practice reading an unfamiliar family's structure, identifying generational patterns, and forming evidence-based hypotheses about how the family system might influence the presenting concern.
The skills built through repeated genogram work include tracking information across multiple generations simultaneously, translating verbal family history into a visual format that a supervisor or treatment team can read quickly, and distinguishing structural facts from relational inferences. Students also learn to update a genogram as new information emerges during treatment, treating it as a living clinical document rather than a one-time intake tool. Familiarity with these skills before entering field placements allows students to spend their clinical hours on assessment and intervention rather than on learning the notation system from scratch under supervision.
Key Patterns in This Genogram
Symbol Reference
Standard genogram symbols and notation demonstrated in context.
Template Structure
Proper genogram layout and organization for academic assignments.
Learning Framework
A teaching tool for understanding family systems theory in practice.
Pattern Analysis
This 3-generation genogram maps 10 family members with birth years spanning from 1945 to 2005, comprising 6 males and 4 females. The genogram tracks 2 medical/psychological condition categories and 13 emotional relationship types across 14 documented dyads. The index patient is Hannah Simmons (b. 2002), college student.
The family system encompasses 3 generations with distinct patterns at each level. The oldest generation includes Arthur, Betty, Victor and 1 other. The middle generation includes Craig, Diane, Edward and 1 other, with 1 presenting documented conditions. The youngest generation includes Hannah, Ian, with 1 presenting documented conditions.
Emotional relationship mapping reveals 1 harmony relationship, 2 close relationships, 1 fused/enmeshed relationship, 1 distant relationship, 1 conflictual relationship, 1 hostile relationship, 1 fused_conflict relationship, 1 estranged relationship, 1 cutoff_repaired relationship, 1 focused-on relationship, 1 love relationship, 1 friendship relationship, 1 indifferent relationship. Specific patterns include a harmony relationship between Arthur and Betty, a close relationship between Victor and Wendy, a fused/enmeshed relationship between Betty and Craig. The co-occurrence of fused and conflictual relationships suggests a family system with poorly differentiated boundaries, where emotional intensity oscillates between enmeshment and discord.
Medical and psychological conditions are documented in 2 of 10 family members (20%). Substance appears in 1 member (Frank). Anxiety-spectrum conditions appears in 1 member (Ian).
As a teaching resource, this genogram demonstrates standard McGoldrick–Gerson notation in a realistic family context. Students can practice identifying key patterns: multigenerational transmission, family life cycle stages, and the interplay between structural relationships and emotional processes. The example integrates both medical and emotional overlays, making it suitable for advanced coursework in family therapy and family medicine.
Build a Similar Genogram
A practitioner documenting a family similar to this one would typically record three generations of household composition, significant life events such as births, deaths, marriages, and separations, any relevant medical or mental health history, and the quality of key relationships between members. That information comes from a combination of the client's verbal account, intake questionnaires, and, where available, collateral records. The completed diagram captures both the factual structure of the family and the practitioner's clinical observations about relational patterns, making it a reference that can be shared across disciplines or reviewed at future stages of treatment.
GenogramAI's AI genogram generator allows you to build a diagram like this one from a plain-language description of the family. You type or paste a narrative, such as the basic structure and any key relationships or health history you want to include, and the AI parses that text, places the correct symbols, draws the appropriate relationship lines, and arranges the layout automatically. The result is a fully editable diagram that you can refine, annotate, and export for clinical records or educational use. Try the AI genogram creator to generate your own genogram from a text description in seconds.
Genogram Symbols Used in This Example
The following standard genogram symbols appear in the Relationship Lines Reference. Each symbol follows McGoldrick and Gerson clinical notation conventions.
Person Symbols
- Male (Square)
- A square represents a male family member in standard genogram notation.
- Female (Circle)
- A circle represents a female family member in standard genogram notation.
Status Markers
- Index Patient (Arrow)
- An arrow pointing to a person identifies them as the index patient — the individual who is the focus of the clinical assessment.
Structural Relationships
- Marriage
- A solid horizontal line connecting two individuals represents a marriage or committed partnership.
- Parent-Child
- A vertical line descending from a couple line to a child symbol represents a parent-child relationship.
Emotional Relationships
- Close
- Two parallel lines between individuals represent an emotionally close relationship.
- Distant
- A dotted line represents an emotionally distant or disengaged relationship.
- Conflict
- A zigzag line between individuals represents an openly conflictual relationship.
- Fused/Enmeshed
- Three parallel lines with a zigzag overlay represent a fused relationship — emotionally intense with poor boundaries.
- Hostile
- A zigzag line with an arrow indicates a hostile, one-directional aggressive dynamic.
- Focused On
- A line with an arrow indicates one person is excessively focused on or caretaking another.
- Friendship
- A single wavy line between individuals indicates a friendship or supportive non-family bond.
Medical Conditions
- Anxiety Conditions
- Shading in the genogram symbol indicates anxiety-spectrum diagnoses (GAD, panic disorder, phobias, OCD).
Related Resources
- Use this example as a reference for genogram assignments in family therapy courses.
- Our guide for genograms for psychology students explains the notation used in this example.
- Start with simple genogram examples if you are new to genogram notation.
- This example uses the close relationship symbol to denote emotional closeness between family members.
- The fused relationship symbol indicates enmeshed boundaries in this family system.
Frequently Asked Questions
What clinical patterns does the Relationship Lines Reference genogram reveal?
How can students use the Relationship Lines Reference genogram?
What genogram symbols are used in the Relationship Lines Reference example?
Can I build a similar genogram for my own clinical cases?
Related Genogram Examples

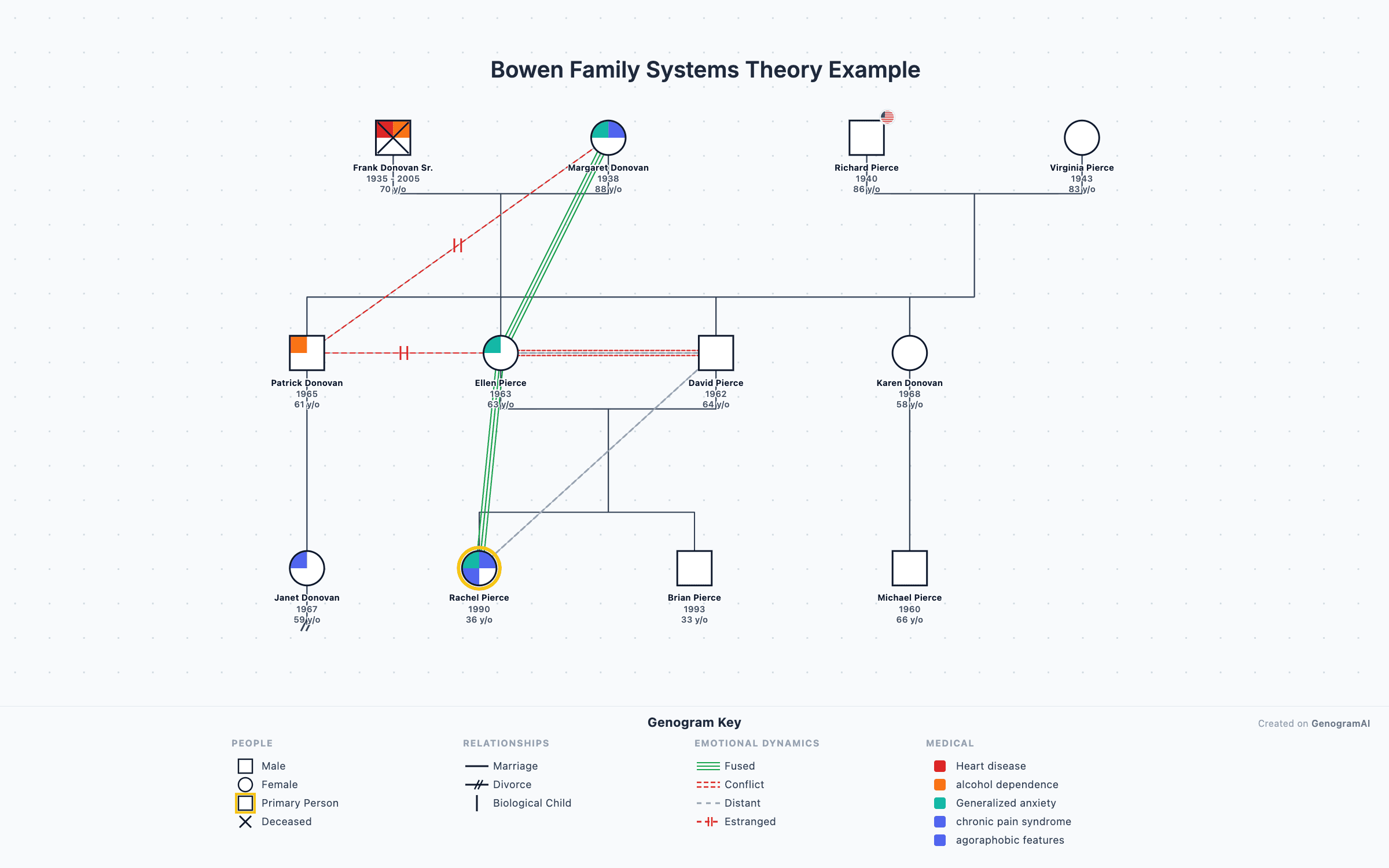

Bowen Family Systems Theory Example
A teaching genogram designed to illustrate Murray Bowen\'s eight interlocking concepts of family systems theory: differentiation of self, triangles.

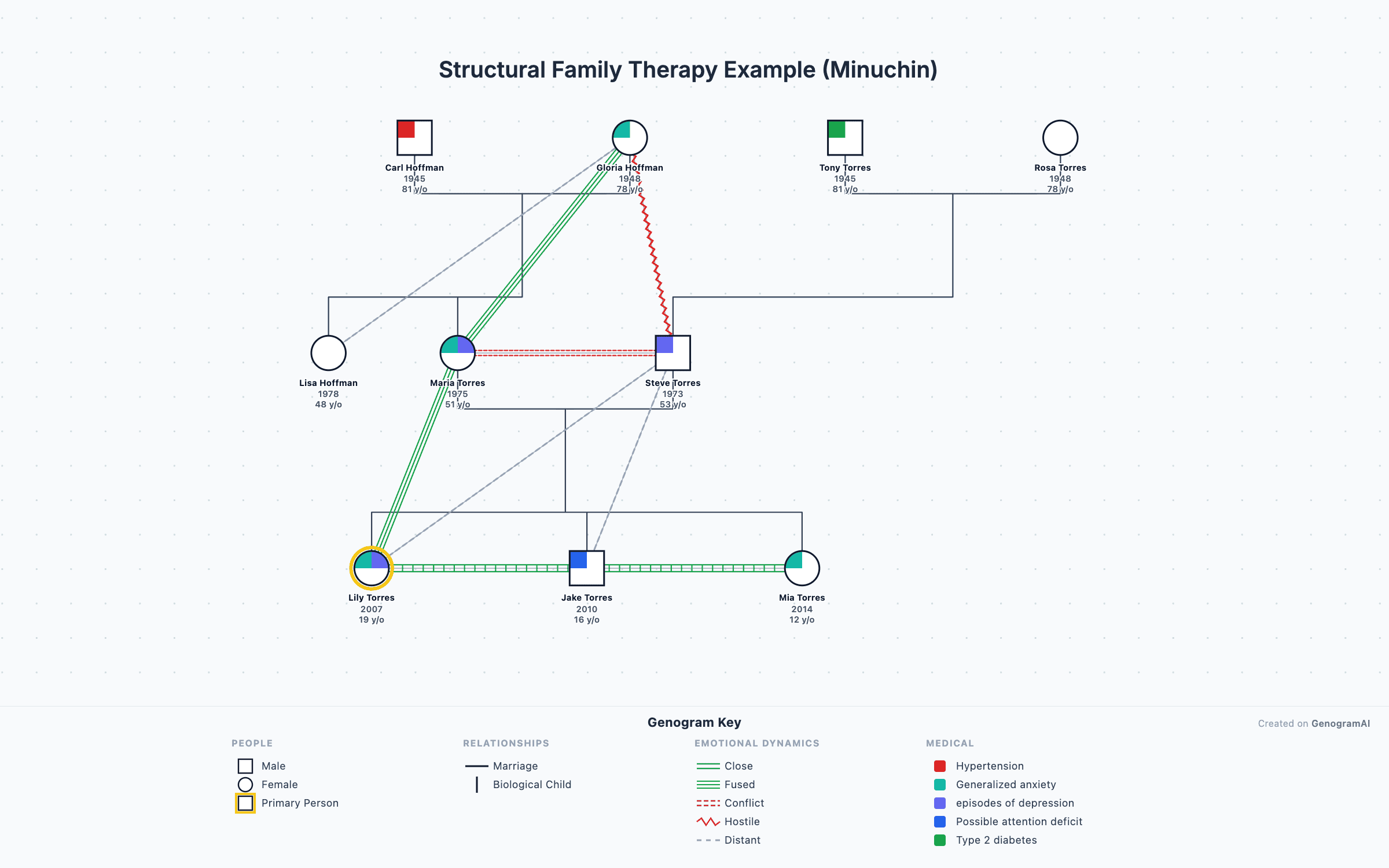

Structural Family Therapy Example (Minuchin)
A teaching genogram illustrating Salvador Minuchin\'s structural family therapy concepts: enmeshed and disengaged subsystems, cross-generational coalitions.

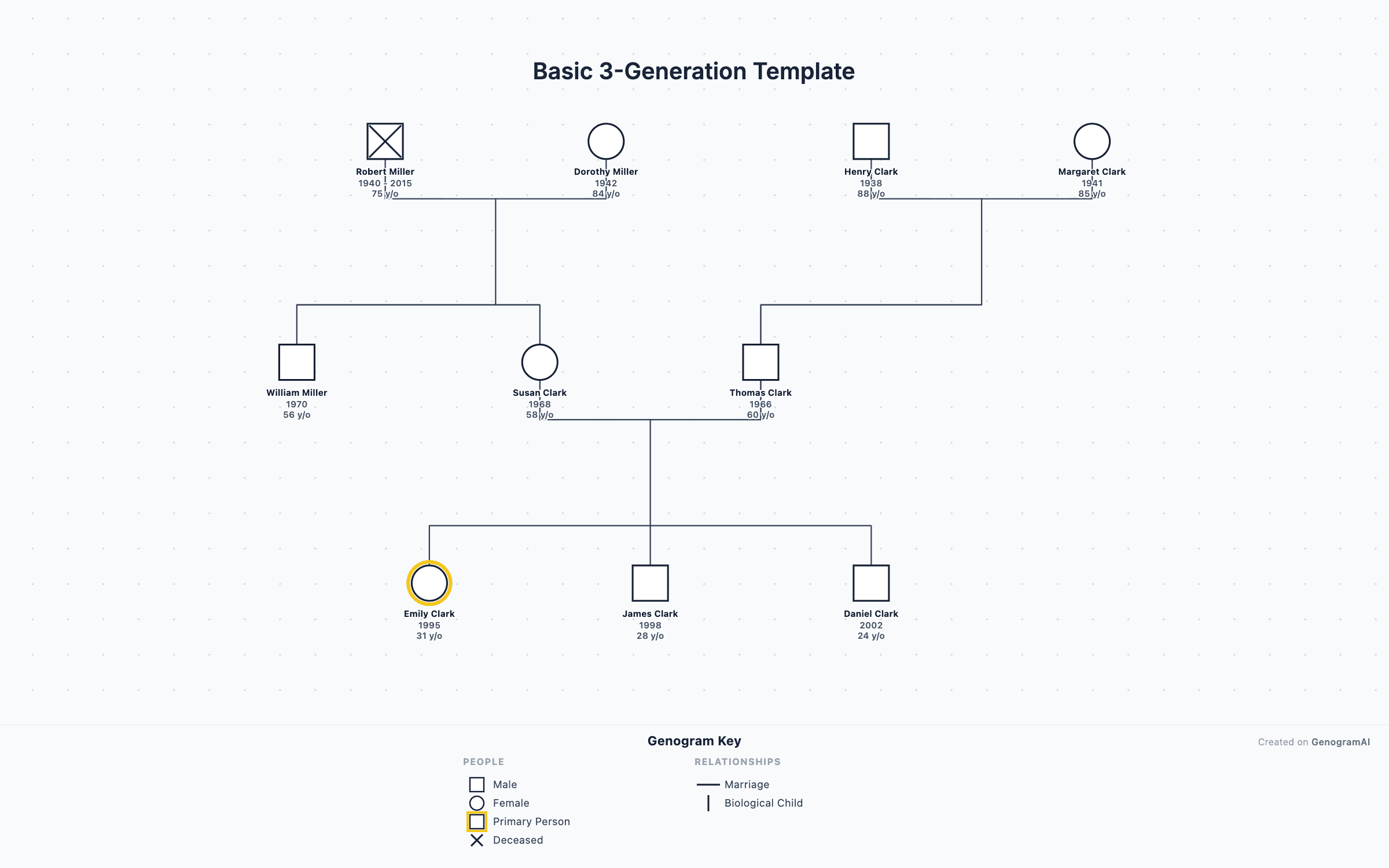

Basic 3-Generation Template
